Air Master HRV ERV Fresh Air Ventilation System Recuperator HVAC Ventilation System with Heat Recovery

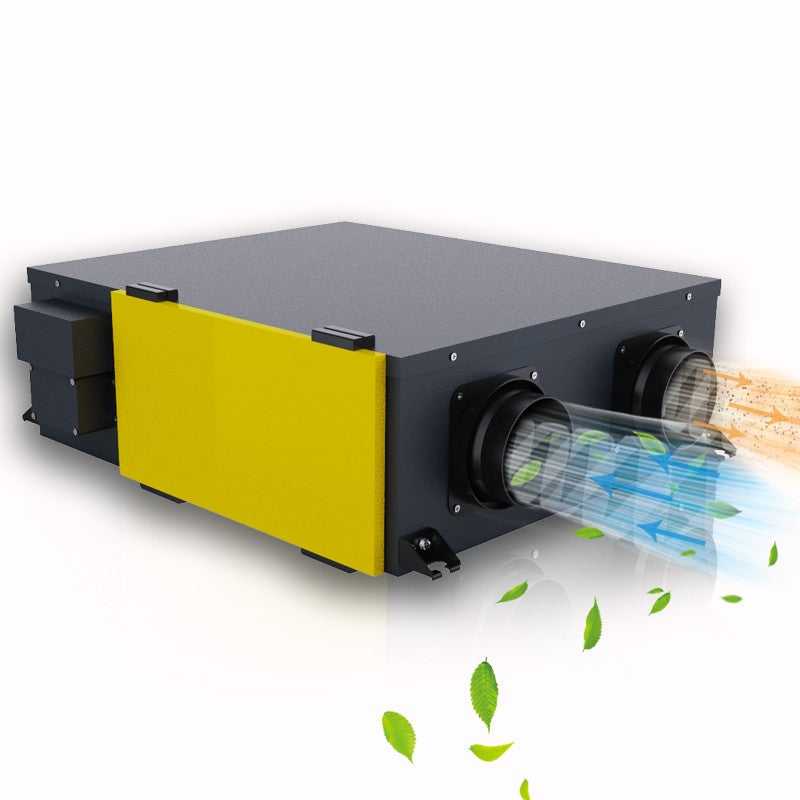

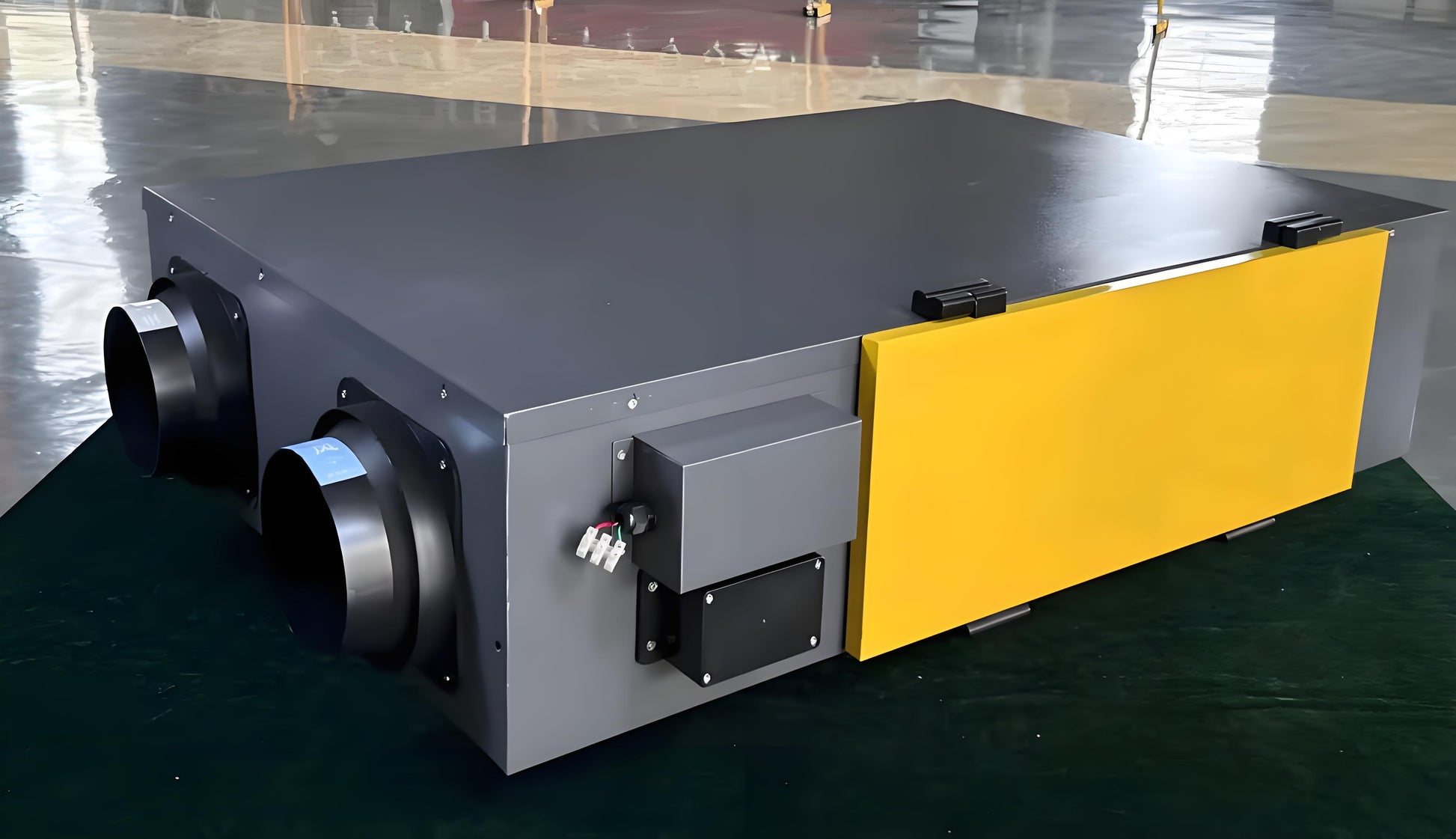

AIRMASTER ENERGY RECOVERY VENTILATOR (ERV)

Model: JMS-AHEPF15D

Improve indoor air quality while reducing energy loss with the AirMaster Energy Recovery Ventilator (ERV). Designed to continuously introduce fresh outdoor air while exhausting stale indoor air, this unit helps maintain a healthier and more comfortable indoor environment through high-efficiency filtration and energy recovery.

SPECIFICATIONS

• Model: JMS-AHEPF15D

• Power Supply: 220V / 60Hz

• Power Consumption: 90W

• Airflow Capacity: 150 m³/h

• Static Pressure: 115 Pa

• Weight: 38 kg

• Dimensions: 114 × 67.5 × 24.5 cm

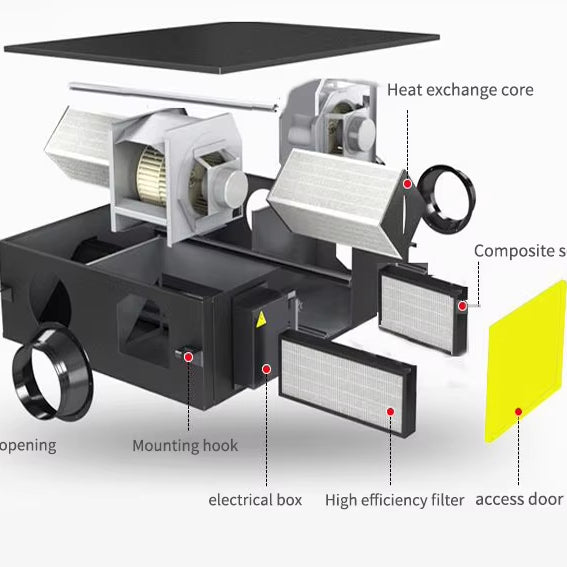

FILTRATION SYSTEM

• H13 HEPA Filter

• H11 Filter

• G4 Pre-Filter

APPLICATIONS

Homes & Condominiums, Apartments, Villas, Hotels & Resorts, Offices, Commercial Buildings, Hospitals & Clinics, Schools & Universities, Restaurants & Cafés, Retail Stores & Shopping Malls, Warehouses, Manufacturing Facilities, Workshops, Meeting Rooms, Home Offices, Kitchens, Bathrooms, Fitness Centers & Sports Facilities.

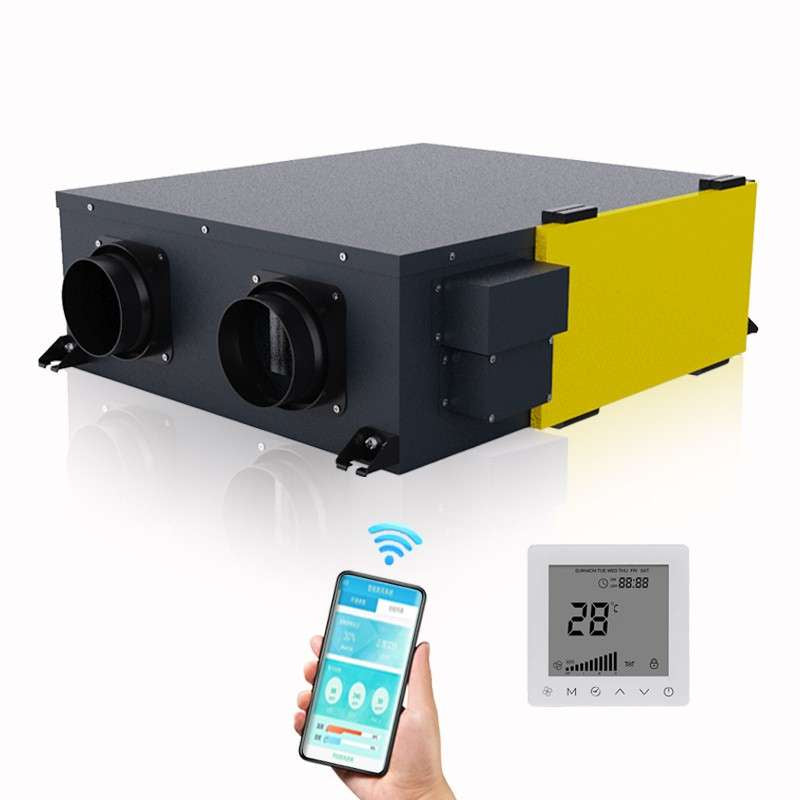

Intelligent, BMS, CO2 control, humidity control (optional)

It is a mechanical filter that has a 99.97% efficiency rate at capturing particles as small as 0.3 microns. HEPA filter is made of thin fibers glass with high density where even the smallest particles would not be able to pass-through. It is used to trap dust mites, pet dander, mold, pollen, to the extent of bacteria and viruses.
